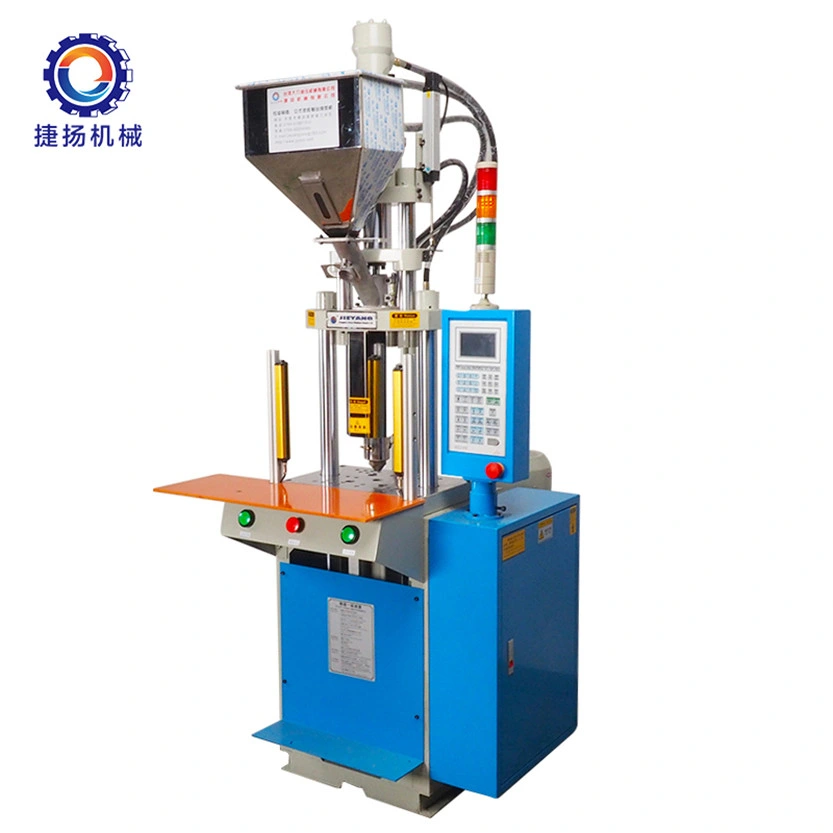

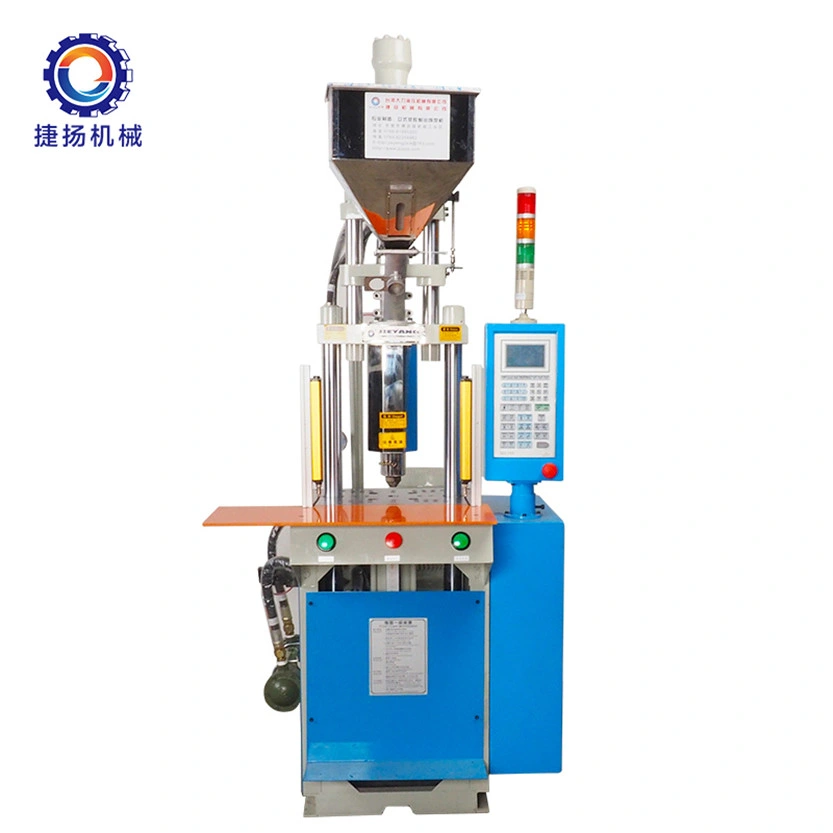

Manufacturer 15 Ton Vertical Injection Molding Machine Plastic Molding


Product Description:


Manufacturer 15 Ton Vertical Injection Molding Machine Plastic Molding

Advantage:

Manufacturer 15 Ton Vertical Injection Molding Machine Plastic Molding
Manufacturer 15 Ton Vertical Injection Molding Machine Plastic Molding
Manufacturer 15 Ton Vertical Injection Molding Machine Plastic Molding

Manufacturer 15 Ton Vertical Injection Molding Machine Plastic Molding

Product:

Manufacturer 15 Ton Vertical Injection Molding Machine Plastic Molding
Manufacturer 15 Ton Vertical Injection Molding Machine Plastic Molding

Specification  of vertical plastic Injection molding machine:

MODELJY-160S2
  UNIT

  INJECTIONUNITScrew DiametermmΦ22Φ26Φ28
Theoretical Injection Volumecm³4461.571.4
Injection Weightg41.65867.5
Max.Injection PressureMpa161.6115.799.7
Injection Ratecm³/s31.54451.08
Injection Speedmm/s83
Injection Strokemm116
Screw Speed Rotationr.p.m0-170
NO.of Temperaturecontrol 3
Nozzie Out From Platensmm≥25
CLAMPINGUNITClamping ForceKN(tf)147(15)
Clamping Strokemm185
Min.Mold Thicknessmm25/75
Max.Openingmm210/260
Distance Between Tie Bas(L*W)mm270
Max.Mould Size(L*W)mm250*200
Platen Size(L*W)mm250*250
Ejector Distancemm25
Ejector ForceKN(tf)12.7(1.3)
OTHERSSystem PressureMpa13.7
Oil Tank CapacityL68
Electric PowerKW(HP)2.2(3)-6P
Heater PowerKW2.2
Machine Dimensions(L*W*H)m1.14*0.865*2.4
Machine Weighttf0.6



Product Features

1)Straight screw ejected assembly.
2)Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4)Low-pressure closed die assembly can protect the safety of die.
5)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6)Can be installed a single mold or double shuttle table.


Application:



vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc




Packaging&Shipping

Package

1.The standard package is wooden box without fumigation.
2. We can also pack it according to customers special request.

Delivery Time

3-25 days after confirming order,detail delivery date should be decided according to production season and order quantity


Manufacturer 15 Ton Vertical Injection Molding Machine Plastic Molding

Certification:

Manufacturer 15 Ton Vertical Injection Molding Machine Plastic Molding

Manufacturer 15 Ton Vertical Injection Molding Machine Plastic Molding

Our Service:

Manufacturer 15 Ton Vertical Injection Molding Machine Plastic Molding

1.
 24 hours online and telephone support; Nomatter anytime, anywhere or any question I will reply you as soon as possible.

2. Exclusive and unique solution can be provided to our customers by well-trained and professional engineers and staffs.

3. Engineers and professional technicians keep seeking the new ways to innovate all of our wheel loaders, which could provide you the most competitive products.

4. Global cooperation with distributors, you can get the most convinent after-sale service. Special discount and protection of sales area provided to your distributor.

5. Your success is our business. We will do our best to provide you the most competitive product with high quality and low price.



FAQ:


Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Why choose Jieyang  Machinery Co., Ltd.?

A4: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.



If necessary, please contact us,we will provide a professional production plan for you.
