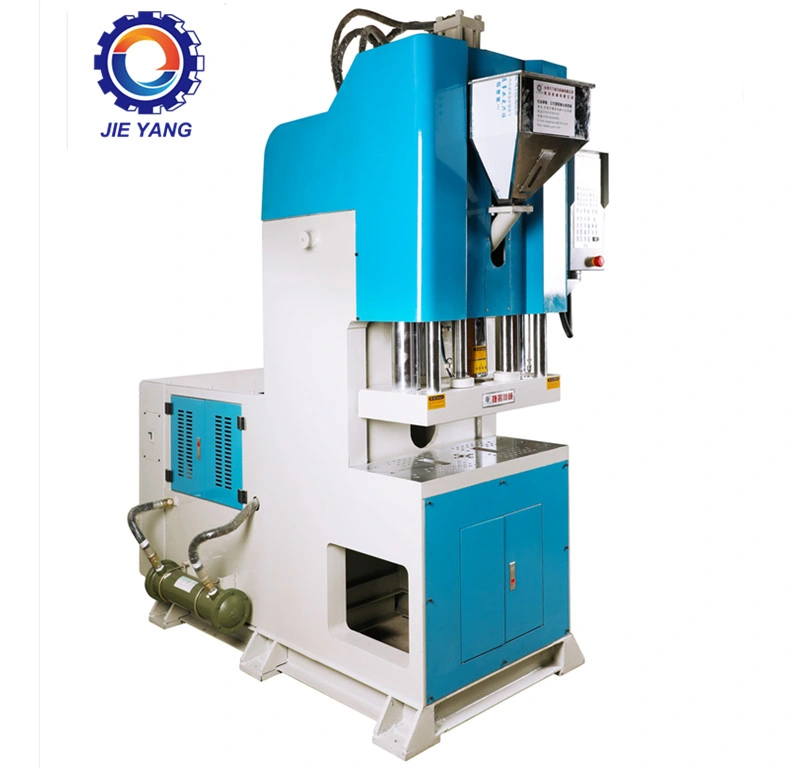

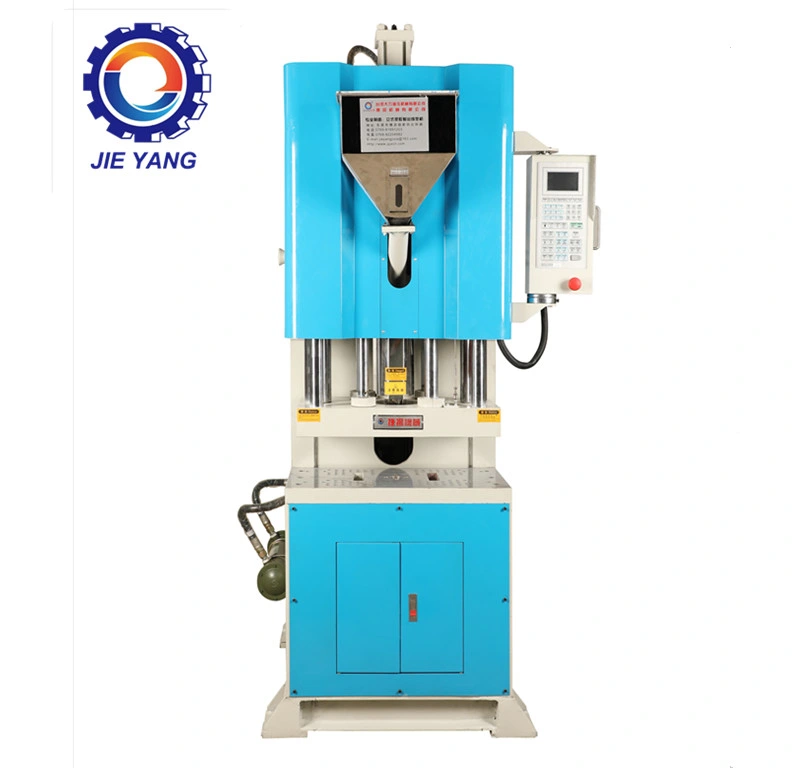

Standard usb power plug cable wire injection plastic molding machine
Main Feature:
1) Vertical clamping and vertical injection Tie -barless design easy and fast moldings insert and take out.With on-line automatiion ,
the operator can have more machinery choices
2) High injection pressure and high speed,suitable for the special molding products.
3) Diversified hydraulic system designs for different application needs.
Application :
| MODEL | UNIT | JY-350VC | |||||
| INJECTION UNIT | Screw Diameter | mm | Φ26 | Φ28 | Φ30 | ||
| Theoretical Injection Volume | cm3 | 66.3 | 76.9 | 88.3 | |||
| Injection Weight(PS) | g(oz) | 62.6(2.2) | 72.6(2.56) | 83.4(2.94) | |||
| Max.Injection Pressure | Mpa(kgf/cm2) | 164.5(1677) | 142(1446) | 123.5(1260) | |||
| Injection Rate | cm3/s | 55 | 64 | 73.5 | |||
| Injection Speed | mm/s | 104 | |||||
| Injection Stroke | mm | 125 | |||||
| Screw Speed Rotation | r.p.m | 0-200 | |||||
| NO. Tempetature control | 3+1 | ||||||
| Nozzle Out From Platens | mm | ≥45 | |||||
| CLAMPING UNIT | Clamping Force | KN(tf) | 254(26) | ||||
| Clamping Stroke | mm | 200 | |||||
| Min.Mold Thickness | mm | 150 | |||||
| Max.Opening | mm | 350 | |||||
| (L*W)Max.Mould Size | mm | 400*300 | |||||
| (L*W) Platen Size | mm | 720*340 | |||||
| Ejector Distance | mm | 60 | |||||
| Ejector Force | KN(tf) | 21.5(2.2) | |||||
| OTHERS | System Pressure | Mpa(kgf/cm2) | 13.7(140) | ||||
| Oil Tank Capacity | L | 160 | |||||
| Electric Power | KW(HP) | 5.5(7.5) | |||||
| Heater Power | KW | 2.9 | |||||
| Machine Dimensions | L*W | m | 2.05*1.145 | ||||
| H | m | 2.21 | |||||
| Machine Weight | tf | 2.25 | |||||
Company :
(1)We will take some videos to guide you use the machine well.It is more simple and easier to understand than the machine manual.
(2)If your moulds could not fit our standard machine,we could make the custom-built machine for your moulds.We will give you a most perfect scheme.
(3)If you could tell me your mould's size (Length*Width*Height),hardness of material and injection weight needed,then we could program the machine for you.So when you get the machine ,you could use it directly.
(4)Because we are machine factory,if you come to our factory,we could teach you to use our machines freely.The machines are easy to use.
(5)Our machines all have 1 year warranty. In this year,if the machine parts damage,we are responsible for the cost of new parts,and you pay the express charges.
Youtube Videos :
VC type machine testing : https://youtu.be/U8A_IS1MXQc
FAQ:
Q1: Are you a trading company or a manufactory?
A1: We are the Manufactory specialized in Plastic injection molding machine more than 20 years; we passed CE & ISO9001 & SGS Certificates.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality afterservice. Also we have one year warranty of the spareparts, free of charge.
Q3: Why choose Jieyang Machinery Co.,Ltd.?
A3: Our products with more than 30% energy saving. Highest Cost effective environmentally. Excellent pre-sale and after-sale service
